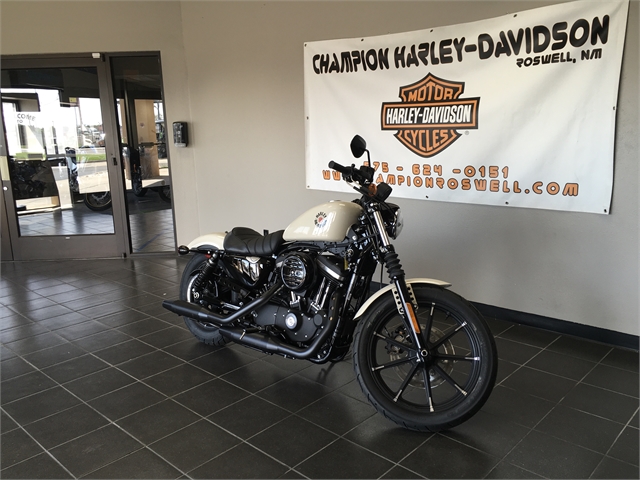

2022 Harley-Davidson Cruiser Iron 883  Featured

Stock #1836
Check Availability Hi, my name is and I'm interested in this 2022 Harley-Davidson Sportster . I'm in the area and you can reach me at or by phone at .



DESCRIPTION

Blacked-out and stripped-down with a legendary profile.

  • Forward riding position
  • Mid-mount foot controls
  • Low

THIS IS THE RIGHT BIKE FOR

  • Urban riders seeking iconic style and V-Twin rumble
  • Middleweight power paired with precision handling
  • 883cc Air-Cooled Evolution® V-Twin engine


883CC AIR-COOLED EVOLUTION® ENGINE

Authentic Harley-Davidson style through and through. The rubber-mounted 883cc Evolution®?engine runs hard and rides smooth for thousands of miles so you can just ride.


LOW SEAT HEIGHT

The combination of a lowered front and rear suspension together with a low, narrow solo seat (just 25.7-inches high) provides comfort and confidence for riders of all sizes and experience.


TUCK AND ROLL SEAT

A solo seat that combines modern comfort with an authentic “tuck and roll” design inspired by the early days of the bobber.


MACHINED 9-SPOKE WHEELS

Blacked out nine-spoke wheels set off by a contemporary mechanical look machined into the spokes.

  • Status:
    New
  • Vehicle:
    2022 Harley-Davidson Cruiser Iron 883
  • VIN:
    1HD4LE215NB411836
  • Model Number:
    XL883N
  • Color:
    White
  • Stock Number:
    1836
  • Title:
    Clear
  • Location:
    Champion Harley-Davidson
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    11.8
  • Front Brake Diameter (mm):
    300
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    11.8
  • Rear Brake Diameter (mm):
    300
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    3
  • Bore (mm):
    76.2
  • CAN Liters Per Kilometer (Combined):
    4.6
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.0
  • Cooling:
    Air
  • Cylinders:
    2
  • Displacement (cc):
    883
  • Displacement (ci):
    53.9
  • Engine Brand Name:
    Evolution®
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    3.81
  • Stroke (mm):
    96.8
  • Torque (Ft Lbs):
    54
  • Torque (Nm):
    73.2
  • Torque RPM:
    3750
  • US Miles Per Gallon (Combined):
    51
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Belt Guard:
    Yes
  • Body Material:
    Steel
  • Foot Peg Location:
    Driver
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    29.9
  • Seat Height (mm):
    759.5
  • Seat Location:
    Driver
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Size (in):
    39
  • Front Suspension Size (mm):
    990.6
  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    247.2
  • Dry Weight (lbs):
    545
  • Engine Displacement to Weight (cc):
    1.62
  • Fuel Capacity (gal):
    3.3
  • Fuel Capacity (l):
    12.5
  • Ground Clearance (in):
    5.5
  • Ground Clearance (mm):
    140
  • GVWR (kgs):
    454
  • GVWR (lbs):
    1000
  • Height (in):
    44.9
  • Height (mm):
    1140
  • Length (ft):
    7.17
  • Length (ft/ft):
    7
  • Length (ft/in):
    2
  • Length (in):
    86
  • Length (mm):
    2185
  • Payload Capacity (kgs):
    198
  • Payload Capacity (lbs):
    436
  • Wet Weight (kg):
    256
  • Wet Weight (lbs):
    564
  • Wheelbase (in):
    59.6
  • Wheelbase (mm):
    1515
  • Width (in):
    32.1
  • Width (mm):
    815

TRANSMISSION

  • Gear Ratio (1):
    10.41
  • Gear Ratio (2):
    7.436
  • Gear Ratio (3):
    5.531
  • Gear Ratio (4):
    4.584
  • Gear Ratio (5):
    3.931
  • Number Of Speeds:
    5
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Michelin® Scorcher™ 31 100/90 R19 57H
  • Front Tire Aspect Ratio:
    90
  • Front Tire Speed Rating:
    H
  • Front Tire Width:
    100
  • Front Wheel Diameter:
    19
  • Rear Tire (Full Spec):
    Michelin® Scorcher™ 31 150/80 R16 77H
  • Rear Tire Aspect Ratio:
    80
  • Rear Tire Speed Rating:
    H
  • Rear Tire Width:
    150
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    Michelin®
  • Wheels Composition:
    Steel
